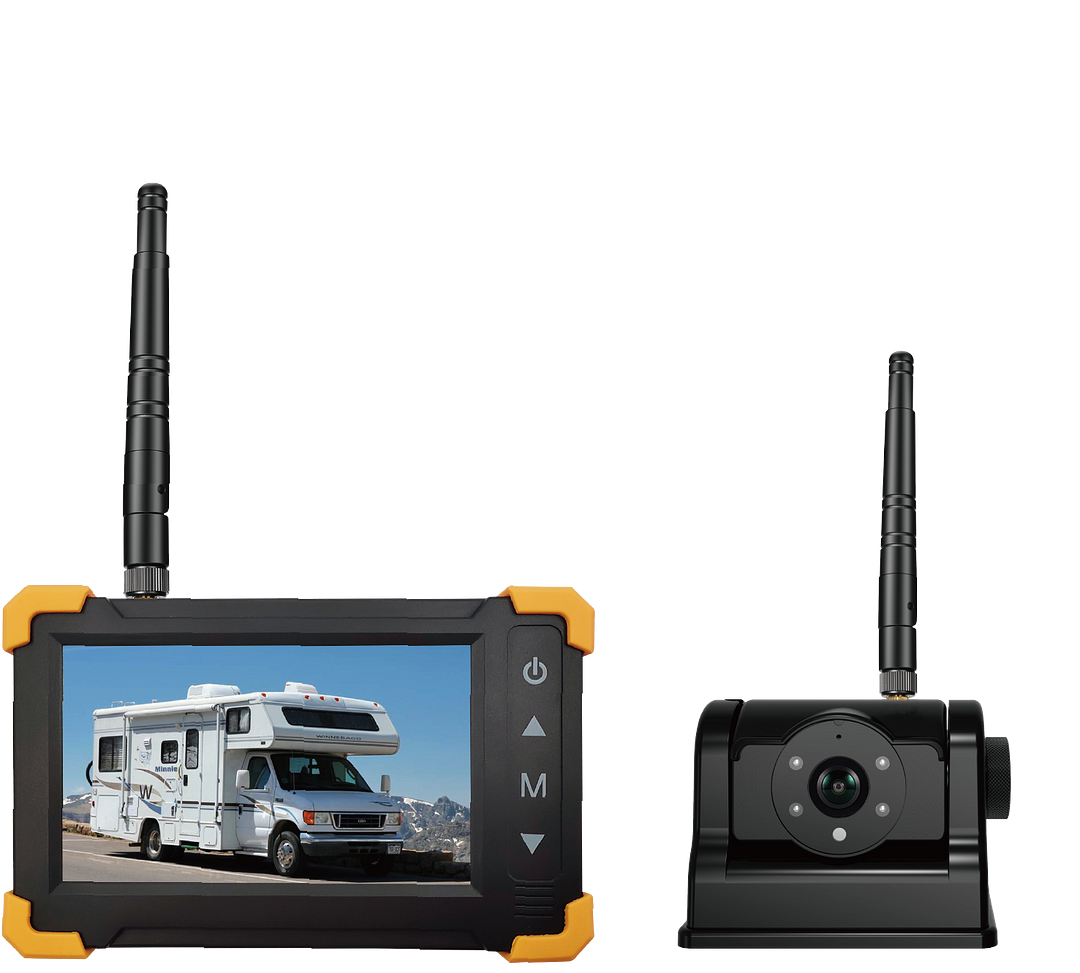

| 5″ 2.4G Digital Wireless Monitor | |
| Specification | Model：EV-580MWHD |
| Screen ratio | 16:9 IPS |
| Screen resolution | 800*R.G.B*480 |
| Backlight | LED, brightness 500cd/m2 |
| Viewing angle | UP—85°，DOWN—85°，LEFT—85°，RIGHT—85° |
| Working temperature | -20~+70 ºC 85%RH MAX |
| Storage temperature | -30~+80 ºC 95%RH MAX |
| Power supply | Tpyec connector, 5V |
| Delay time | 120mS |
| Working Time | 8H for continuous working |
| Charging time | 1A/3.5H |
| Battery Capacity | 2500mA |
| Wireless video | 1 channel HD wireless video input |
| Frequency | 2400 ~ 2483.5MHz * |
| Decompression mode | H.264 |
| Receive sensitivity | -89dBm@4MHZ |
| Spread spectrum mode | FHSS(Adaptive frequency hopping) |
| Transmission Distance | 150M in open area |
| Shockproof Level | 4G |
| Material | PC，Plastic injection molding |
| Power cable | Tpyec USB Charging Cable |
| Weight | 0.54KGS |
| Dimension | 148mm*94mm*20mm |
| Attachment | USB Charging Cable, Suction Mount or 566 fan shaped bracket or 568 butterfly shaped bracket, User Manual, 2.4G 5DB Antenna, 35M antenna extension cable, Car Charging Cable |
| Wireless camera | |
| Specification | Model：EV-111D |
| Resolution | 720P 1280*720px |
| Image Sensor | CMOS 1/2.7" |
| Viewing Angle | 140° |
| Transmission Distance | 150M in open area |
| System | N/P Automatically |
| Spread Spectrum | FHSS(Adaptive frequency hopping) |
| Transmission Bandwidth | 8MHz BER<1E-3 |
| Battery Capacity | 6400mA |
| Battery indicator | Support, 4PCS LED lights |
| Battery Charging Time | DC5.5，12~24V/6H |
| Working Time | 18H(under continuous working conditions) |
| Fully charaged standby time | Zero power consumption at standby situation |
| Camera Adjustable Angle | 0-100 degree |
| Frequency | 2400-2483.5MHZ |
| ON/OFF Mode | Long press to ON/OFF, short press to show battery status |
| Installation Mode | Magnet base adsorption installation |
| Night Vision | HD-infrated night vision |
| SNR | 46.5dB |
| Audio | Without (Optional) |
| Waterproof level | IP67 |
| Transmitting sensitivity | -89 dBm |
| Material | Black aluminium alloy |
| Shockproof Level | 4G |
| Power supply | DC12-24V |
| Operation Temperature | –20℃ ~ 70℃, RH95%MAX |
| Storage Temperature | –30℃ ~ 80℃, RH95%MAX |
| Dimensions | 74*45.5*56.5mm |
| Accessories | 5.5DC male power cable, 5DB antenna, Power adapter( Euri, UK or US optional) |
Package Includes:
Wireless Camera * 1
5″ 2.4G Digital Wireless Monitor * 1
DC5.5+typec power cable * 1
Fan shaped bracket *1
Car Charging Cable* 1
2.4G 5db antenna +5M 2.4G antenna extension cable * 1
|
